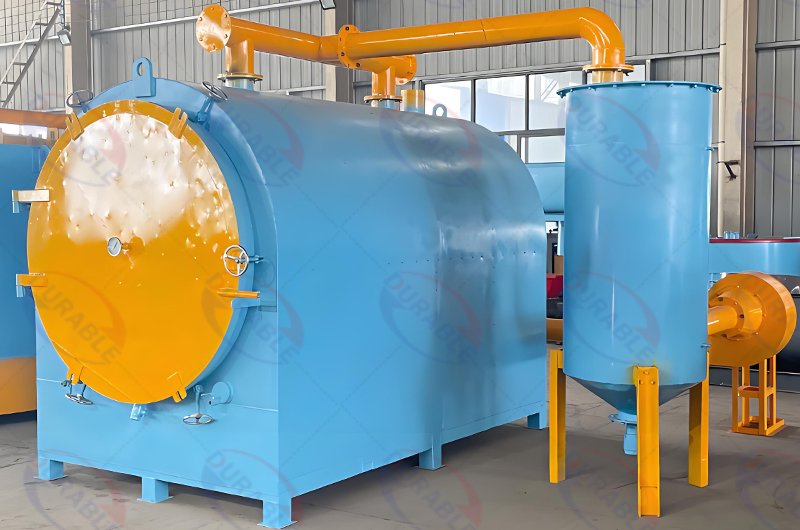

Horizontal Charcoal Carbonization Furnace

The Horizontal Charcoal Carbonization Furnace is a classic, reliable, and widely used piece of carbonization equipment. It is particularly suitable for users who want to batch-produce high-quality lump charcoal (such as BBQ charcoal). Although it operates intermittently, its modern gas recycling and self-sufficient energy design make it a mature technology that combines both efficiency and environmental friendliness.

Biomass materials:

Horizontal Charcoal Carbonization Furnace is a type of furnace that produces charcoal by heating biomass (such as wood, firewood, bamboo, coconut shells, etc.) in an oxygen-deficient environment, causing it to undergo pyrolysis (dry distillation).

WhatsApp Chat

Get A Quote Now

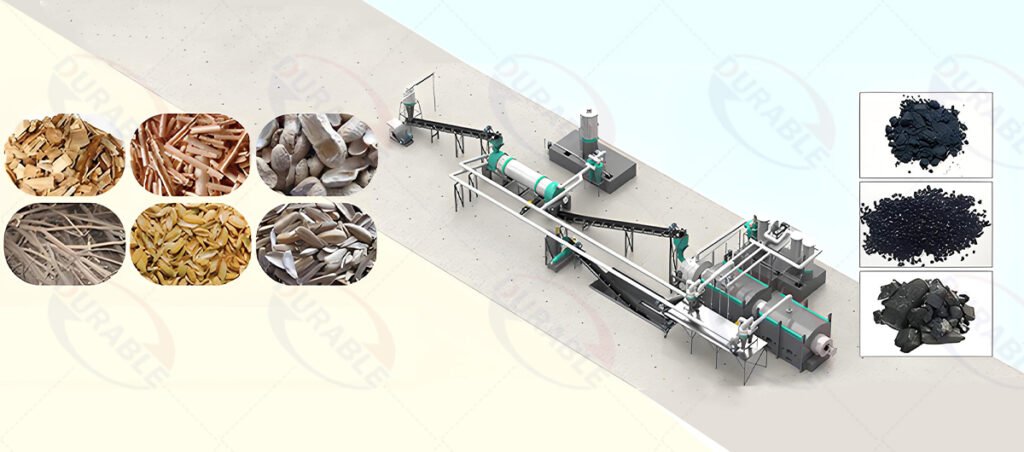

How Does a Horizontal Furnace Handle Loading, Ignition, and Sealing?

It works by loading material into a removable inner cart, which is then rolled into the main furnace chamber and sealed behind a large door. The process is straightforward but requires careful execution.

1. Loading: This is the horizontal furnace’s biggest advantage. You load your raw material—wood logs, bamboo, briquettes—into a large, rectangular steel cart. This can be done outside the furnace, making the work much easier and safer than loading a vertical kiln from the top.

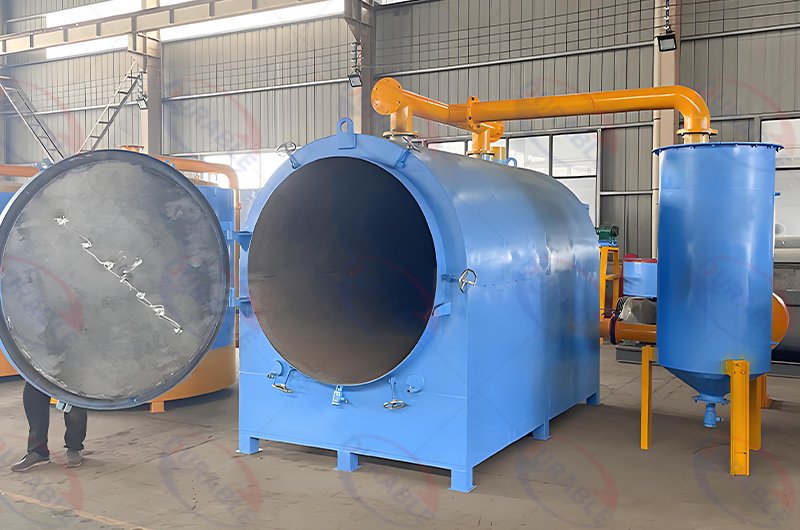

2. Ignition and Sealing: Once loaded, the cart is rolled into the furnace chamber on a set of rails. The large, heavy furnace door is then swung shut and clamped down tightly. Ignition is typically started by burning some wood in a firebox located underneath or beside the main chamber. The hot flue gas from this firebox is then channeled around the inner chamber, heating the material inside through a process called indirect heating or dry distillation.
3. Sealing: The seal is the most critical and vulnerable part. It relies on a gasket, usually made of high-temperature ceramic fiber rope, which is compressed between the furnace body and the door. A perfect seal is crucial to create the oxygen-free environment needed for carbonization.
   The veteran I know calls the large door “the root of all problems.” The constant cycle of heating to 700°C and cooling back to room temperature causes the massive steel door to warp over time. Once it warps, the seal is compromised, letting in tiny amounts of air that burn your charcoal, silently killing your yield.

Compared to a Vertical Kiln, What Are the Requirements for the Factory and Foundation?

A horizontal furnace requires more floor space but has much lower height requirements and a simpler foundation. This is a key difference that impacts your site selection.

• Horizontal Furnace: As the name suggests, it’s long and low. It needs a significant amount of clear, flat floor space to accommodate the furnace itself, plus the area in front of it needed to pull the hot cart out for cooling. However, it can be installed in a standard workshop with a normal ceiling height. The foundation is usually a simple, flat concrete slab, as the weight is distributed over a large area.
• Vertical Kiln: A vertical kiln is tall and narrow. It requires much less floor space but needs a very high ceiling or must be installed outdoors. It often requires a more complex, deeper foundation to support its concentrated weight. Additionally, loading a vertical kiln often requires a crane, conveyor, or a raised platform, adding to the installation complexity and cost.

With Stationary Material, How Do You Ensure Wood Carbonizes Evenly from the Outside In?

You achieve even carbonization through careful loading patterns and precise temperature control, not by technology alone. This is the “art” of using a horizontal furnace. Unlike a continuous furnace that tumbles the material, the wood in a horizontal kiln stays still. Heat must travel from the outside of the log to its core.
The biggest mistake new operators make is packing the cart too tightly to maximize the load. This is a recipe for disaster.

1. Create Air Channels: You must intentionally create channels for hot gas to flow through the pile. This means stacking logs in a crisscross pattern, leaving gaps between them. This allows the heat to circulate freely and reach every piece of wood.
2. Slow and Steady Temperature Rise: The key is to control the heating rate. You raise the temperature slowly over several hours. This gives the heat time to penetrate to the core of the logs without “overcooking” the outside. A skilled operator watches the color of the smoke and the furnace temperature, adjusting the firing rate to maintain this delicate balance.
   Uneven heating leads to “raw core” charcoal, which is a common quality problem. The experience of your operator in loading the cart and controlling the fire is more important than any feature on the furnace itself.

What Is the Key Technology Affecting the Yield and Quality of a Horizontal Furnace?

The single most critical technology is the furnace’s ability to capture and reuse its own syngas for self-heating. This is what separates a modern, efficient furnace from a simple “iron box.”

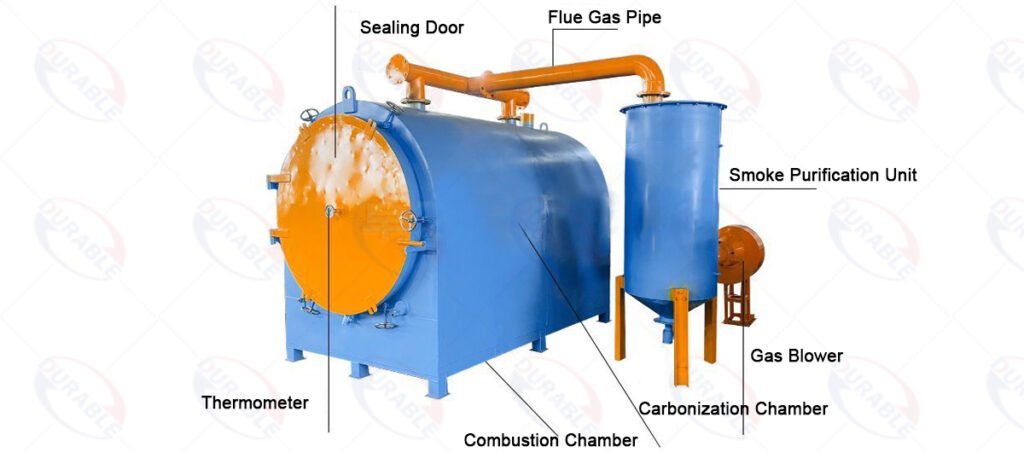

During the carbonization process (around 300-500°C), the wood releases a large amount of combustible gas (syngas). A well-designed Horizontal Smokeless Carbonization Furnace has a system to do the following:

1. Capture: It draws this gas out of the main chamber.
2. Clean: It passes the gas through a spray tower or condenser to remove the tar and wood vinegar. This is a crucial step.
3. Burn: It pipes the now-clean syngas back to the firebox.
   Once the furnace starts producing enough syngas, you can stop adding external fuel. The furnace then runs on its own energy, a process called “autothermal” or “self-sustaining” carbonization. This technology dramatically reduces your energy consumption and makes the process much more environmentally friendly. The efficiency of this gas recycling system is a key indicator of a furnace’s quality.

Is the Overall Cost of a Horizontal Furnace Really Lower?

The initial purchase price is often lower than a continuous system, but the true cost depends heavily on labor and the number of inner carts you buy. You must calculate the cost per ton of charcoal produced, not just the horizontal carbonization furnace price.

• Initial Price: A horizontal furnace is structurally simpler than a continuous rotary furnace, so its manufacturing cost and initial price are generally lower.
• Labor Cost: This is a major operating expense. It’s a batch process that requires significant manual labor for loading, unloading, and monitoring. You need to factor in the cost of at least two skilled workers.
• The “Hidden” Cost of Carts: This is the most overlooked cost. The carbonization process takes about 8-12 hours, but the cooling process takes another 10-15 hours. If you only have one inner cart, your expensive furnace sits idle for more than half the time, waiting for the cart to cool. To achieve semi-continuous production, you must invest in at least three inner carts: one carbonizing inside the furnace, one cooling outside, and one being loaded with fresh material. This significantly increases the total investment but is the only way to make the process efficient.
  When you factor in the lower efficiency and higher labor needs, the long-term operational cost of a horizontal furnace is not always as low as it first appears.

How Does the Flue Gas and Wood Vinegar Collection System Work?

The system works by channeling the hot, wet smoke from the furnace chamber through a series of condensers (coolers). As the smoke cools, the tar and wood vinegar turn from a gas into a liquid and can be collected.

The condensed liquid, a crude mix called “pyroligneous acid,” is collected in a tank. The clean syngas is sent to be burned.
Important Note: The raw, collected liquid is not ready to be sold or used. It’s a smelly, acidic, and potentially hazardous mixture. It requires further processing (settling, filtration, distillation) to separate the tar from the valuable wood vinegar. Many furnace suppliers don’t explain this, leaving the buyer with barrels of toxic waste they can’t get rid of.

A fan or blower pulls the raw smoke (a mix of steam, syngas, tar, and acids) out of the furnace chamber.

The smoke is passed through a series of pipes or a spray tower that is cooled by water.

As the smoke’s temperature drops rapidly, the heavier components like tar and wood vinegar condense into a liquid. The lighter, combustible syngas remains a gas.

Is a Horizontal Furnace Suitable for My Firewood, Fruit Wood, or Bamboo?

Yes, the horizontal furnace is excellently suited for carbonizing large, irregularly shaped pieces of wood like firewood, fruit tree logs, and whole bamboo poles. This is one of its core strengths.
Because you are manually loading the material into a large, open cart, you don’t have the size restrictions of many continuous, automated systems.

• Firewood and Logs: It’s ideal for carbonizing logs up to several feet in length and several inches in diameter.
• Fruit Wood: Many types of high-quality barbecue charcoal are made from fruit woods. The horizontal furnace is perfect for this application.
• Bamboo: It can carbonize whole bamboo poles, which is difficult to do in other types of furnaces.
  The key is that the material should be relatively dense. It is not efficient for processing loose, light materials like sawdust or rice husks, as it’s difficult to get a good packing density in the cart.

FAQs

Q1: How long does one batch take in a horizontal furnace?

A: A full cycle, from loading to having cooled charcoal ready, takes about 24 to 30 hours. This typically includes 2-4 hours for loading, 8-12 hours for carbonizing, and 10-15 hours for cooling.

Q2: What is the typical charcoal yield?

A: For air-dried wood (around 15-20% moisture), a well-operated horizontal furnace can achieve a yield of about 3:1 to 4:1 by weight. This means 3-4 tons of wood will produce about 1 ton of charcoal. The yield depends heavily on the wood species, its moisture content, and the operator’s skill.

Q3: How much maintenance does a horizontal furnace require?

A: The main maintenance task is regularly checking and replacing the door seal. Over time, you will also need to inspect the inner cart and rails for heat-related deformation or corrosion. A well-built furnace from a manufacturer like Durable, using proper heat-resistant steel, will require far less maintenance than a cheap one made from standard carbon steel.

Q4：How soon can I see a return on my investment?

A: This depends on your local costs for wood and labor, and the selling price of charcoal in your market. With a system using three carts for semi-continuous operation, many of our clients see a return on their investment within 12 to 24 months, provided they have a stable supply of raw material and a ready market for their charcoal.
