Concrete Mixer Pump
Theoretical pumping capacity:
30-45m³/h
Power:
Diesel engine / Electric motor
application:
A concrete mixer pump is a mechanical equipment that combines the functions of a concrete mixer and a concrete pump. It integrates mixing and pumping, enabling the simultaneous mixing, transportation, and pouring of concrete at the construction site, thereby improving construction efficiency.
The concrete mixer with pump adds drum mixer to the trailer pump, which integrates concrete mixing and pumping functions into one. There are many types of concrete mixer pumps available.
Table of Contents
- What is a Concrete Mixer Pump, and How Does It Work?
- Types of Concrete Mixer Pumps
- Durable Concrete Mixer Pump’s Fine Components: Achieving High-Quality Work for You
- What Advantages Does a Concrete Mixer Pump Offer Your Projects?
- Where is a Concrete Mixer Pump Most Useful for You?
- How Do You Choose the Right Concrete Mixer Pump Model and Specifications?
- Concrete Mixer Pump Price
- Reasons for choosing Durable as your concrete mixer pump supplier
- Durable Expert Support and Reliable Service: Protecting Your Concrete Mixer Pump Investment
- FAQ
What is a Concrete Mixer Pump, and How Does It Work?
A concrete mixer pump is an advanced machine. It mixes concrete and pumps it at the same time. This machine takes the place of two separate units. You would normally need a concrete mixer and a concrete pump. Our machine combines these functions into one. This makes your work simpler. It also makes your operations more efficient. It is an integrated concrete mixing and conveying machine.
Our concrete mixer pump combines a drum mixer with a trailer pump. This merges concrete mixing and pumping functions into one compact unit. It has a reliable diesel or electric engine. This makes it good for small to medium construction projects. It is especially useful in areas with limited site space. It removes the need for separate mixers and pumps. This significantly lowers your labor and equipment costs. The concrete mixer pump is highly mobile. It is easy to operate. It boosts efficiency. It delivers high-quality concrete directly to your pour site.
Types of Concrete Mixer Pumps

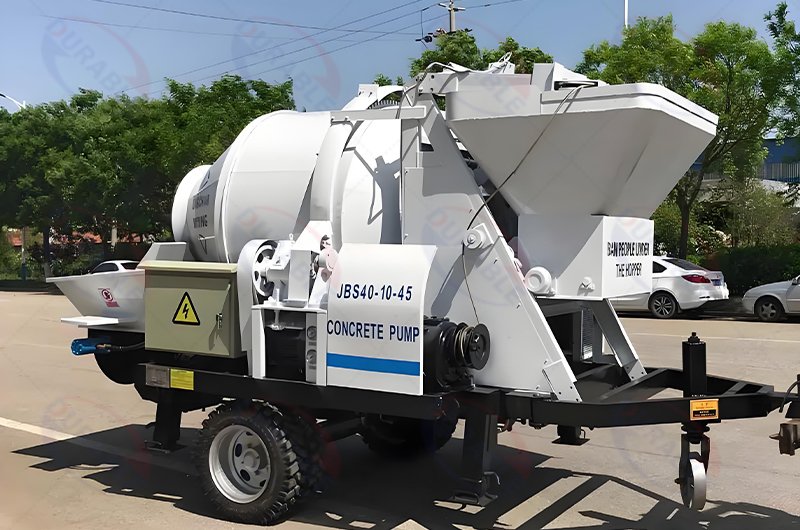

Type 1.Electric Type
The HBT series electric concrete mixer pump combines the traditional concrete pump and the mixer together, has the following advantages. The outlet hole is specially designed as the coarse type, which is wear-resisting and can prolong its service if, the arch broken structure is equipped with the machine which can avoid the concrete plug, insuring the smooth working of the concrete mixer, the hydraulic pipe joints are products of American Eaton brand, insuring the safety and no leakage of hydraulic system. The main electric elements are from Schneider, the reliability of the electric control system is highly improved.
Technical Data:
| Item | Unit | JBS30-JZC350 | JBS40-JZC350 | LJBS40-10-45 |
| Max. Theoretical Concrete Output of Mixer | m3/h | 10-14 | 10-14 | 25-30 |
| Max. Theoretical Concrete Output of the Pump | m3/h | 30 | 40 | 40 |
| Max Exit Pressure | Mpa | 10 | 10 | 10 |
| Concrete Cylinder bore × stroke | mm | Ф140×845 | Ф180×1200 | Ф180× 1000 |
| Main Oil Cylinder bore × stroke | mm | Ф80/55×845 | Ф100/70×1000 | Ф100/70×1000 |
| Hydraulic Oil Tank Volume | L | 370 | 370 | 370 |
| Exit Diameter | mm | Ф100 | Ф150 | Ф150 |
| Conveying Pipe Inner Diameter | mm | Ф100 | Ф125/150 | Ф125/150 |
| Motor Power | KW | 47.55 | 55.75 | 45 |
| Max Aggregate Size | mm | 20 | 30/40 | 40/50 |
| Max Horizontal Conveying Distance | M | 120 | 150 | 120 |
| Max. Vertical Pumping Height | M | 500 | 600 | 400 |
| Mixer Model | JZC350 | JZC350 | LJ750 | |
| Input Volume | L | 560 | 560 | 1200 |
| Output Volume | L | 350 | 350 | 750 |
| Outline Dimension (L×W×H) | mm | 4200×2300 x2600 | 4200×2300 x2600 | 3800x2200x2100 |
| Weight | Kg | 4200 | 4500 | 4800 |

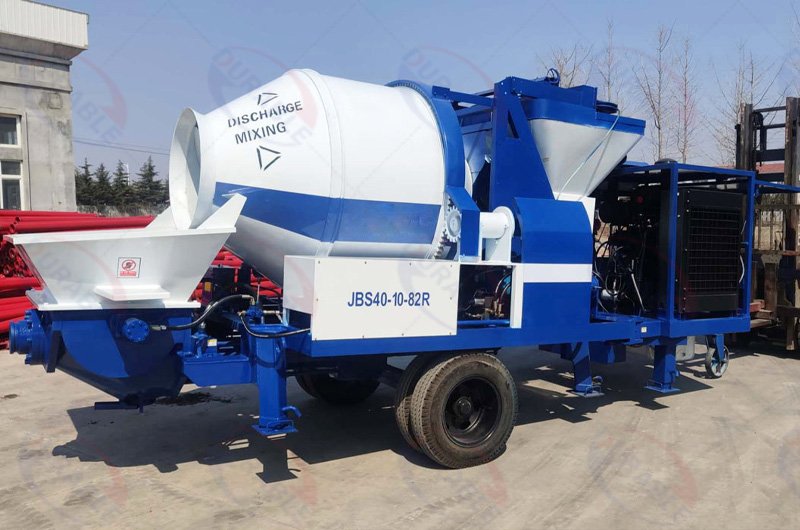

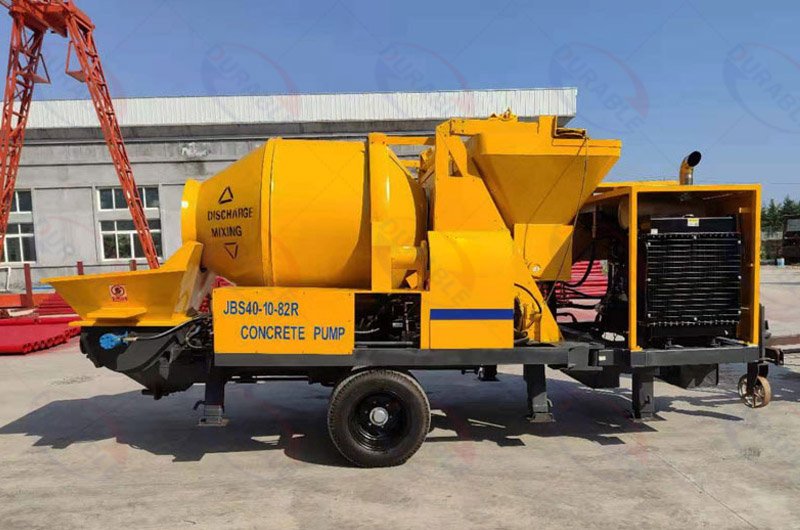

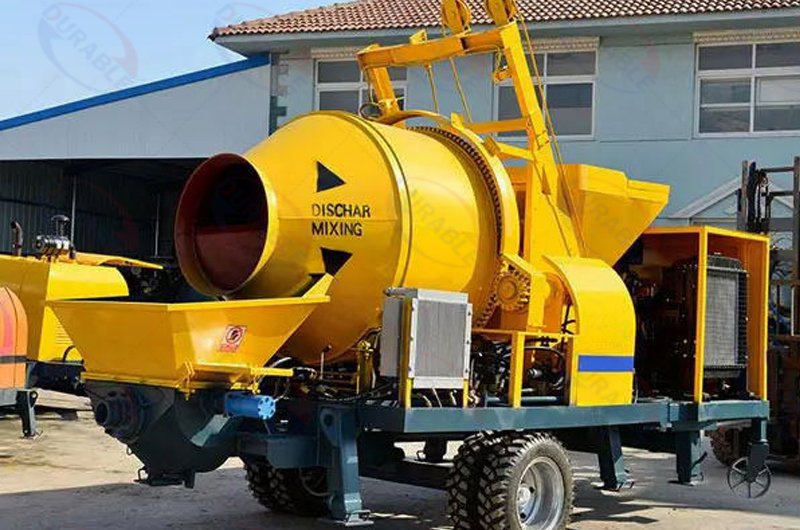

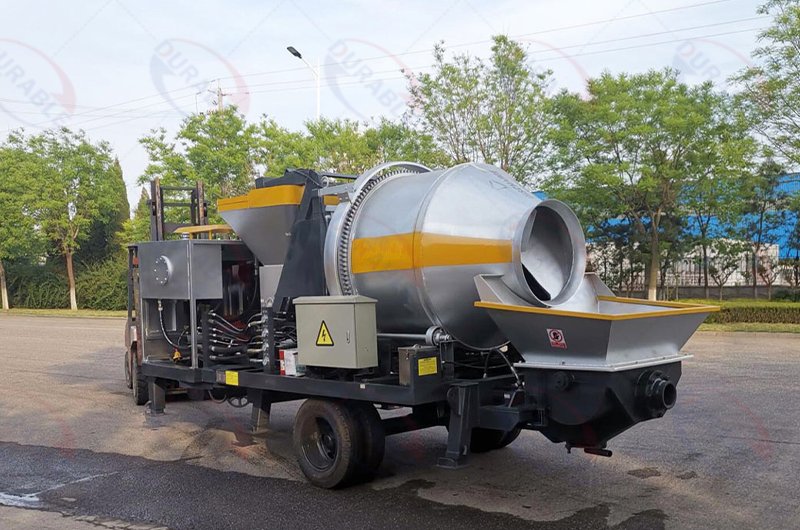

Type2：Diesel Type
The HBT series diesel concrete mixer pump made a change on power compared with electric type, Mixing and pumping into one, simple to operate, easy to move, flexible, and stable performance. The pump construction operation system used in all automated, a material mixing, high pressure pumping as one; Double cylinder hydraulic pumping system, hydraulic system greatly enhance the stirring Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions, and especially suitable for areas where there is short of power.
Technical Data:
| Item | Unit | JBS30R-JZC350 | JBS40R-JZC350 | LJBS40R |
| Max. Theoretical Concrete Output of Mixer | m³/h | 10-14 | 10-14 | 25-30 |
| Max. Theoretical Concrete Output of the Pump | m³/h | 30 | 40 | 40 |
| Max Exit Pressure | Mpa | 10 | 10 | 10 |
| Concrete Cylinder bore х stroke | mm | Ф140х1100 | Ф200х1000 | Ф180х1000 |
| Main Oil Cylinder bore х stroke | mm | Ф80/55×1200 | Ф 100/70×1000 | Ф100/70×1000 |
| Hydraulic Oil Tank Volume | L | 370 | 370 | 370 |
| Exit Diameter | mm | Ф100 | Ф150 | Ф150 |
| Conveying Pipe Inner Diameter | mm | Ф100 | Ф125/150 | Ф125/150 |
| Diesel Engine | WEIFANG 4100 | DEUTZ | DEUTZ | |
| Engine Power | KW | 29.4 | 66 | 82 |
| Max Aggregate Size | mm | 20 | 40/50 | 40/50 |
| Mar Horizontal Conveying Distance | M | 120 | 150 | 120 |
| Max Vertical Pumping Height | M | 600 | 700 | 400 |
| Mixer Model | JZC350 | JZC350 | LJ750 | |
| Input Volume | L | 560 | 560 | 1200 |
| Output Volume | L | 350 | 350 | 750 |
| Outline Dimension (LxWxH) | mm | 4200x2300x2600 | 4200x2300x2600 | 3800x2200x2100 |
| Weight | Kg | 4200 | 4500 | 4800 |
How Does This Combined System Function?
Our advanced concrete mixer pump system makes mixing and pouring simple. The machine combines mixing and pumping functions. It helps achieve best efficiency. A loader easily feeds sand, stone, cement, and other raw materials into the hopper. It has intuitive remote control for precise loading management. This means less effort for your team.
The mixer pump machine directly discharges mixed concrete into the pump’s integrated feed hopper. Our high-performance concrete mixer pump’s hydraulic pumping system then accurately delivers it to the required location. Using Durable concrete mixer pump equipment, you can save time, labor, and cost on your construction site. Choosing a good concrete mixer pump manufacturer is important for your investment. Durable’s proven system has reliability. It has industry-leading performance. This makes your projects run smoothly.
The combined system works in a few steps. First, aggregates, cement, and water enter a large mixing drum. This drum turns and mixes all materials. We use high-strength steel for this part. This ensures its long life. It is built tough, like our mineral processing equipment. We use strong welding. This makes the machine stable. It works well even in tough conditions.
After mixing, the concrete moves into the pumping system. This system has a powerful hydraulic drive. We use hydraulic parts from global brands. This gives strong and steady pumping power. It ensures long distance and high height concrete pumping. We use special valves, like S-valves or gate valves. They are wear-resistant. They seal well. This greatly reduces blockages. It improves pumping efficiency. Critical wear parts, like spectacle plates, use high wear-resistant materials. Their design is also optimized. This extends their service life. It means you change parts less often.
| Component | Function | Your Benefit |
|---|---|---|
| Mixing Drum | Blends raw materials into concrete | Consistent, high-quality concrete |
| Hydraulic Pump | Moves concrete to target location | Strong, steady concrete flow |
| Smart Controls | Automates mixing and pumping | Easy operation, fewer errors |
Practical Tips for Your Project
- For continuous flow: Use the integrated design to keep concrete fresh. It ensures continuous supply to the pouring point.
- For tough materials: Choose our specific mixer type. Our forced mixers handle high-grade concrete. They manage large aggregates. This ensures uniform quality.

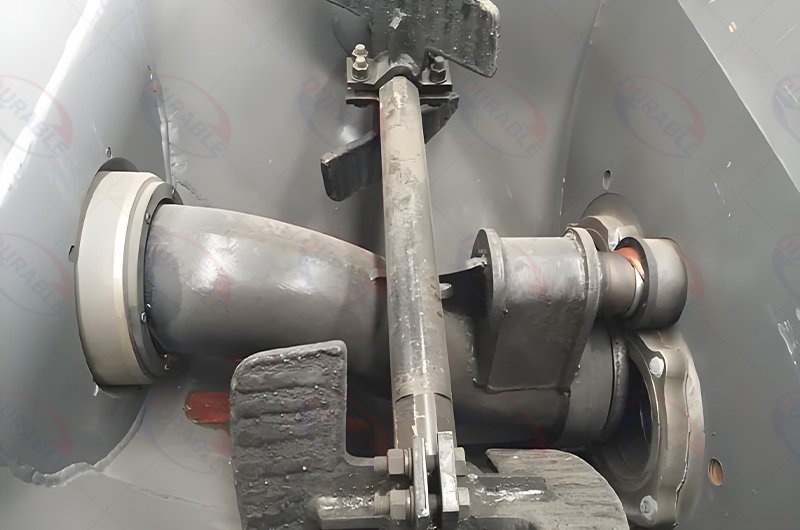

Durable Concrete Mixer Pump’s Fine Components: Achieving High-Quality Work for You
Durable Concrete Mixer Pump uses advanced parts. This ensures high quality. These machines offer unmatched reliability, efficiency, and durability. Their advanced system includes many critical components. Each part is chosen for its performance and longevity. This design focus helps you achieve better results on your job site. It keeps your operation smooth.
For instance, the main oil pump is a key part. We use high-quality imported options. These include Kawasaki (Korea) or Rexroth brands. This gives you excellent hydraulic performance. The diesel engine is robust. It is powered by a Weichai diesel engine. This ensures continuous power even in tough conditions. It means your machine keeps working when you need it most.
An open hydraulic system ensures smooth operation. It has minimal energy loss. A 100μm oil suction filter provides high-precision filtering. This protects critical parts from contamination. An aviation-grade cooler ensures hydraulic oil stays at the best temperature. This leads to maximum efficiency. Italian Manuli oil pipes are premium hydraulic hoses. They ensure leak-free performance. Taiwan Yuken hydraulic valves offer precise control. They lead to smooth operation.
The mixing motor is a top Chinese brand. It provides strong and stable mixing performance. Reinforced mixing blades and shafts are very hard. Both left and right half shafts have a hardness of HB250-280. This gives maximum wear resistance. Brand swing cylinders and S-valves are precisely designed. These two parts ensure smooth concrete flow. Wear-resistant spectacle plates and cutting rings are made from special alloy materials. This extends their service life. A complete set of pipes is included. They are compatible with various work conditions. This allows seamless concrete placement.
The machine has a 450L large capacity. This maximizes batch efficiency. Dual hydraulic motors drive the machine faster. They make mixing efficiency 30% higher than standard models. Japanese Omron relays provide an industry-leading system. This ensures electrical safety and reliability. High-quality proximity switches ensure accurate sensor performance. The 250mm thickened drum steel uses an integrated design. This gives superior structural stability. All these parts combine to give you a reliable and powerful concrete construction equipment.
What Advantages Does a Concrete Mixer Pump Offer Your Projects?
A concrete mixer pump brings many core advantages to your projects. It is a big step up from using separate machines. You gain significant benefits in terms of efficiency, cost, and overall project management. This machine is an efficient concrete construction equipment.
Firstly, it improves your construction efficiency improvement. The single machine streamlines the process. You mix concrete on site. Then you immediately pump it. This removes the need for transport trucks between mixer and pump. It avoids delays. It ensures concrete is always fresh for pouring. This continuous process speeds up your work. You can complete tasks faster.
Secondly, you will see great project cost savings. You only buy one machine instead of two. This cuts your initial investment. It also lowers fuel consumption. You have fewer engines running. Labor costs also decrease. One operator can manage both mixing and pumping. This saves you money on wages. Less equipment means less maintenance too. This helps your bottom line.
How This Integration Saves You Money and Time
Our integrated concrete mixing and conveying machine offers flexibility. We provide both electric and diesel versions. You can choose based on your site power. The machine is also highly mobile. You can get it on a trailer. You can also get it mounted on a truck. Some models even come on tracks. This makes it easy to move the machine. You can shift it between different parts of your site. This mobility saves transport costs. It saves time during site setup.
The theoretical pumping capacity of our concrete mixer pumps ranges from 30-45 m³/h. We offer models with either a diesel engine or an electric motor for power. Our EMP product SKU models have a product price of USD 9800. They are currently in stock. Editors have given them a rating of 5. These features contribute to its strong value proposition.
| Advantage Category | Specific Benefit | How It Helps Your Project |
|---|---|---|
| Efficiency | Streamlined process | Faster project completion |
| Cost Saving | Reduced labor needs | Lower operational expenses |
| Mobility | Easy site movement | Less transport cost, faster setup |
| Quality Control | Fresh concrete delivered | Better structural integrity |
Practical Tips for Your Project Success
Optimize labor: Use one operator for mixing and pumping. This reduces your workforce needs. It lowers your labor cost optimization.
- Reduce waste: Direct pumping minimizes concrete spills. This means less material waste on site.
- Speed up pour times: Achieve higher concrete output. This is critical for large, continuous pours.
Where is a Concrete Mixer Pump Most Useful for You?

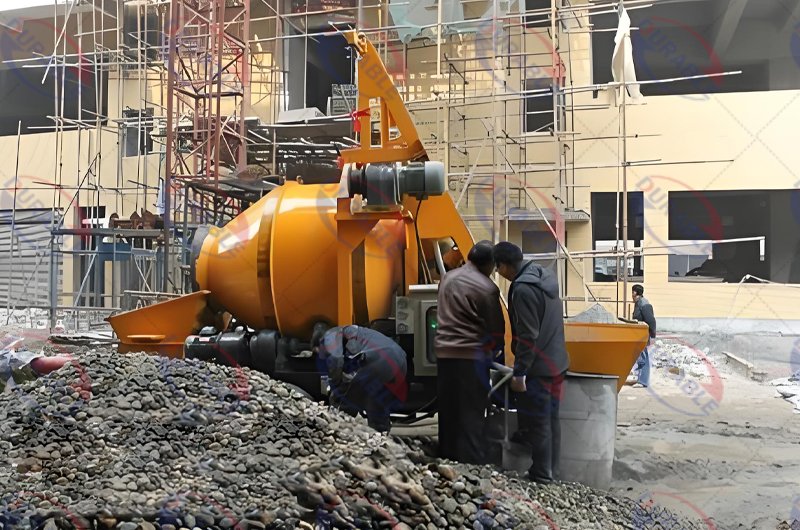

The concrete mixer pump is highly versatile. It shines in many construction scenarios. It is especially useful where space is tight. It also helps when access is difficult. This concrete construction equipment solves many common engineering challenges.

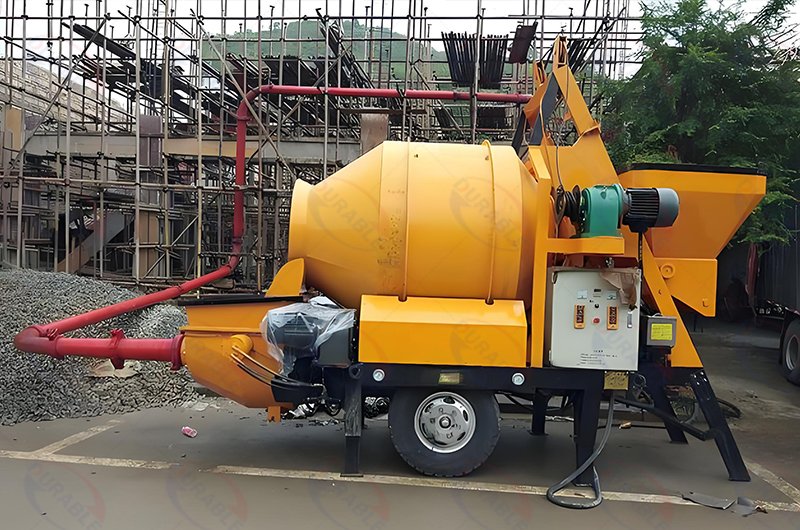

For building companies and contractors, it is a perfect fit. Think about small to medium-sized projects. These include housing, factory buildings, or rural construction. If you work in narrow city spaces, this machine is ideal. It helps with urban renovation. It helps with basement pouring too. Any job needing continuous, small batch pouring can use it.
Tunnel and bridge projects also benefit greatly. This machine provides a stable and continuous concrete supply. It is perfect for tunnel linings. It works well for bridge box girders. Its steady flow ensures high quality for these critical structures.
Solving Your Engineering Challenges with This Machine
Solving Your Engineering Challenges with This Machine
The integrated concrete mixing and conveying machine is also great for water conservancy projects. You can use it for dams, canals, and reservoirs. It helps with other concrete structures too. For rural infrastructure development, it is a game-changer. This includes roads, culverts, and farmhouses. It is very useful in remote areas. These places often lack steady power. Transportation can be difficult there. The machine’s flexibility handles these issues.

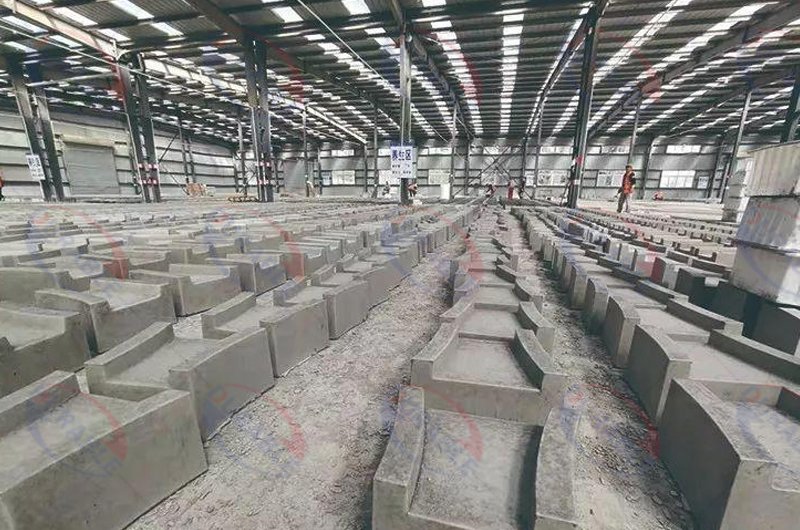

We also serve concrete prefabrication manufacturers. Our machine offers a flexible mixing and pumping solution. It is for smaller precast factories. Equipment rental companies find it popular too. It is a highly efficient rental item.
| Application Type | Specific Use Case | Your Problem Solved |
|---|---|---|
| Urban Projects | Basement pouring, city renovation | Tight space, difficult access |
| Infrastructure | Bridge decks, tunnel linings | Continuous, high-volume needs |

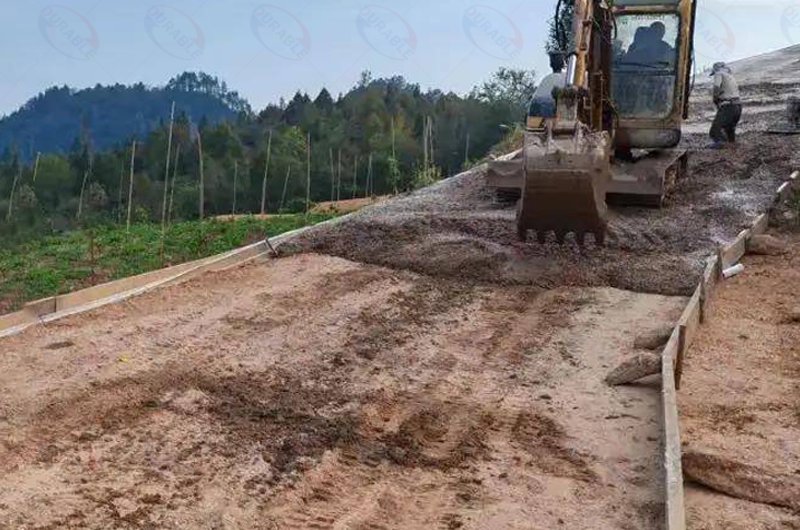

| Rural Development | Roads, farmhouses | Remote areas, limited power |
| Prefabrication | Small precast plants | Flexible batch production |
Concrete Pouring Solutions for You
- For remote sites: Use the diesel concrete mixer pump. It does not need external power.
- For high places: Choose a model with strong pumping height capabilities. This allows you to pour concrete in tall structures.
- For long distances: Select a machine with a good pumping distance. This helps when the pouring site is far from the machine.
How Do You Choose the Right Concrete Mixer Pump Model and Specifications?
Choosing the right concrete mixer pump is important. It depends on your specific project needs. You must consider several factors. These factors include your project size, concrete needs, site conditions, and budget. Making the right choice ensures optimal performance. It also helps with project cost savings.
First, think about the concrete output you need. How many cubic meters per hour do you need? Small projects might need 20-30 m³/h. Larger ones might need 40-60 m³/h or more. Our models range in capacity. We can match your exact production requirements. This ensures you do not overpay for too much capacity. You also avoid delays from too little capacity.
Next, consider the pumping distance and pumping height. How far and how high must the concrete go? Some projects are at ground level. Others might be multi-story buildings or tunnels. We have pumps designed for different distances and heights. This flexibility helps you deliver concrete exactly where it is needed. We help you find the right pump for your concrete pumping needs.
Key Considerations for Your Equipment Selection
Your site conditions matter. Do you have reliable electricity? If not, a diesel concrete mixer pump is a better choice. If power is readily available, an electric concrete mixer pump might be more cost-effective. We offer both options. This helps you fit your power situation.
Consider the type of concrete you will use. Some projects use standard concrete. Others require high-strength concrete or concrete with specific aggregates. Our mixer pumps come with different mixing systems. Drum mixers are good for basic concrete. Forced mixers (twin-shaft or planetary) ensure better uniformity for complex concrete. This helps you maintain concrete quality.
| Selection Factor | What to Consider | Your Practical Impact |
|---|---|---|
| Concrete Output | Required m³/h | Timeliness, material flow |
| Pumping Range | Distance and height | Reach all pouring points |
| Power Source | Electricity vs. Diesel | Operational flexibility |
| Concrete Type | Standard vs. Special | Concrete quality, mix integrity |
Practical Advice for Your Site Equipment Selection
- Determine your required pumping capacity (output): Pumping capacity is measured in cubic meters per hour (m³/h). It tells you how much concrete the pump can deliver. You should match the output to your project needs and mixer pump equipment.
- Determine maximum aggregate size allowed for your materials and pump: Your concrete pump with mixer must handle the largest stone or aggregate size in your concrete mix.
- Choose the power type: diesel or electric: Diesel engines are best for remote sites without reliable electricity. They offer high power and mobility. Electric motors are more cost-effective and eco-friendly. They are good for indoor or city projects with stable power.
- Determine the pumping distance (vertical and horizontal): Make sure the pump meets your maximum required distance. This avoids inefficiency. Vertical pumping height is mainly for tall buildings. Horizontal distance is for long-range pouring.
- Determine concrete slump (workability): An ideal slump for pumping is about 100 mm or higher. This makes concrete flow smoothly. Low slump mixes (below 50 mm) can cause blockages. Too wet mixes might lower structural integrity.
These factors are important when choosing a concrete pump. Higher capacity means faster project completion. Proper aggregate size reduces blockage risk. The correct power source means lower fuel costs and better mobility. Sufficient pumping distance ensures no concrete pouring delays. Optimal slump means smoother operation and higher quality pours.
Concrete Mixer Pump Price
The price of a concrete mixer pump is diverse in the market anywhere. There are many different factors determining or influencing the price of a concrete mixer and pump such as pumping capacity, pumping pressure and drive type and so on.
The concrete mixer with pump can be divided into diesel-driven mixer pump and electric-driven mixer pump on the basis of the difference of power sources.
Prices for different model parameters of the same diesel concrete mixer pump vary. For instance, JBT30-08R and JBT40-11-82R belong to diesel-driven mixer pump, but their prices vary due to the differences of the parameter.
The price of a diesel engine mixer pump that power is 30kw is around 20,000$, while the price of a 40kw same type mixer pump ranges from 23,000$ to 31,250$.
JBT30-08R refers to the concrete mixer pump that the power of working is 30kw and JBT40-11-82R refers to the concrete mixer with pump of which power is 40kw.
Prices for the same model parameters of the concrete pump driven by different power sources vary as well. For example, the price of JBT30-08R is different from that of JBT30-08.
The price of a electric-driven concrete pump that the power is 30kw is around $17,120 while the price of the same engine concrete mixer pump that the power is 40kw is $195,300.
Reasons for choosing Durable as your concrete mixer pump supplier
Investing in a concrete mixer pump means durability, efficiency, and long-term reliability. Durable aims to give you best performance with minimal downtime. We build our machines to last. We focus on details that ensure your investment is sound. We want to maximize your productivity.
- Advanced Hydraulic System Protection: The hydraulic oil tank uses specially treated steel pipes. This prevents corrosion. It extends the system’s life. To clean the oil tank, hoses and valve blocks are thoroughly cleaned. This removes contaminants. It ensures clean hydraulic oil circulation. It reduces wear and tear. This means fewer breakdowns for you.
- Ultra-Clean Diesel and Hydraulic System: Diesel cleaning ports are heat-treated. They are purged with compressed air. This removes all impurities. It guarantees cleaner oil quality. By keeping hydraulic oil pure, we minimize system failures. We also extend operational life. This leads to more uptime for your machine.
- Strict Pre-Delivery Testing: Before shipping, we conduct high, medium, and low-pressure tests. This ensures the machine runs stable. It also checks for leaks. We verify performance under real conditions. You receive a fully optimized mixer pump machine. This gives you confidence from day one.

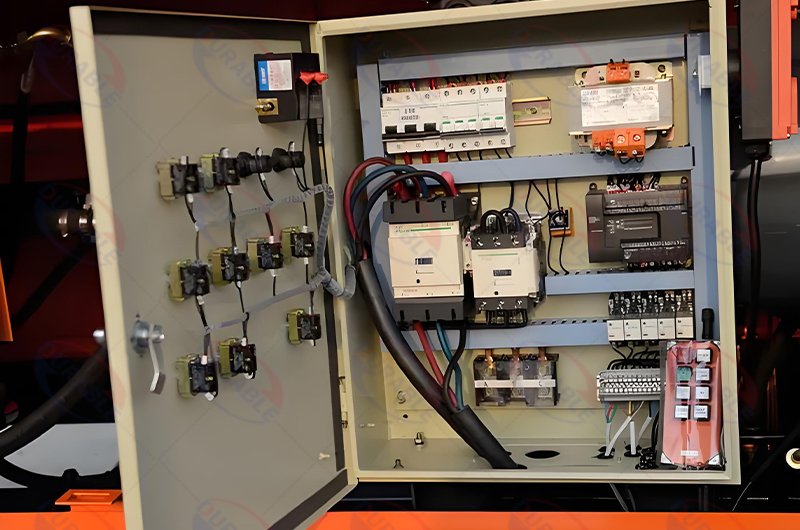

- Enhanced Power Stability: Our mobile concrete mixer pump includes voltage and current stabilization. This prevents power fluctuations. It ensures uninterrupted operation. This is especially important on sites with unstable power supply. It means consistent output for you.

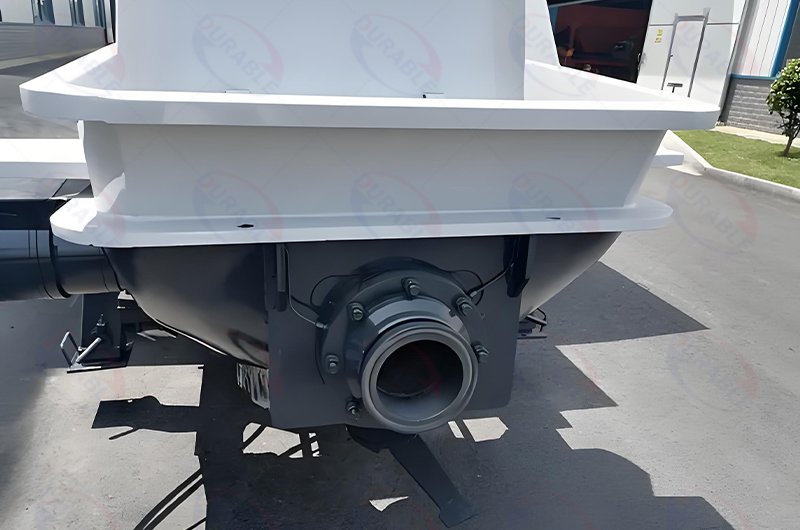

- Heavy-Duty Pumping Pipeline for Maximum Efficiency: The concrete mixer pump pipeline has a diameter of 125 mm. It has a thickness of 4.5 mm (5 mm at bends). This ensures superior strength and wear resistance. It also comes with C-type quick pipe clamps. They allow fast, tool-free installation and removal. This greatly saves time. It boosts productivity at the construction site. Choosing Durable company means you get a cleaner hydraulic system for fewer faults. You get strict pre-testing for reliable performance. You get power stability for consistent operation. You also get robust pipelines and quick clamps to speed up your workflow.
Durable Expert Support and Reliable Service: Protecting Your Concrete Mixer Pump Investment
Durable provides complete solutions. We offer expert technical and after-sales service. We believe in supporting you throughout the machine’s life. This protects your investment. It ensures your concrete mixer pump continues to operate effectively.
Comprehensive Pre-Sales Support: We offer equipment selection guidance. We provide detailed technical comparisons. We give one-on-one service. This matches the best machine for your project needs. We ensure you make an informed decision. We want to find the perfect fit for your specific concrete pouring solutions.
Professional After-Sales Service: Our engineers are on standby. They solve problems quickly. We offer remote and on-site setup. We give operation guidance. Our team is ready to assist you. They ensure your concrete mixer pump runs smoothly.
Timely Logistics: We guarantee on-time delivery. We provide door-to-door shipping. We deliver to your specified destination. This means your equipment arrives when you need it. You can start your project without delay.
Machine Protection: We offer a 1-year warranty. It covers all parts. This does not include normal wear parts. We have a local after-sales service network. This ensures faster response times. We keep wear parts in stock. Common replacement parts are immediately available. This minimizes your downtime. It keeps your concrete pump working.
FAQ
Q 1: What is the main difference between a concrete mixer pump and a standard concrete pump?
A: A concrete mixer pump combines both mixing and pumping functions in one unit. A standard concrete pump only pumps pre-mixed concrete. The integrated unit offers significant space and labor savings for your projects.
Q 2: Can a concrete mixer pump handle all types of concrete?
A: Our machines handle various concrete types. This depends on the specific mixer type chosen. Drum mixers are for general use. Forced mixers are for high-strength concrete or those with large aggregates. We help you pick the right model.
Q 3: How long do the wear parts on a concrete mixer pump typically last?
A: Wear part lifespan varies. It depends on concrete type and usage. Our parts use high wear-resistant materials. They also have optimized designs. This significantly extends their life compared to standard parts. Regular maintenance also increases their duration.
